HFY Distribution Pad-Mounted Transformers in Single Phase & Three Phase Version,Dry type resin epoxy transformers, also Pole Mounted single phase Transformers,Oil Immersed Three Phase Transformers all Products For Power Distributions Systems According ANSI&IEC Standards.
Brand:
Made: In China.

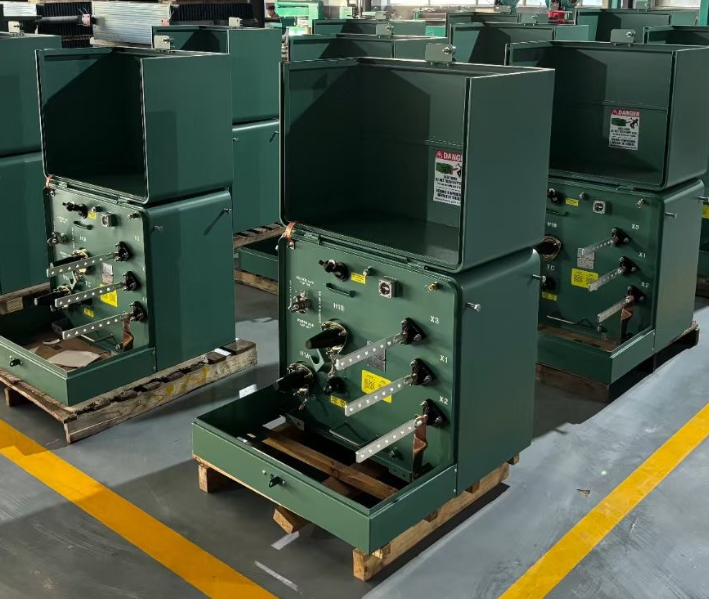

Range Product., Single Phase Pad-Mounted Transformer:
-Rated Power: 10 upto 167 KVA
-Termination: Loop feed or Radial feed., dead front
-High Voltage: 2400V-19920V ,
-Low Voltage: 120-240V, 3 wires. other under request.
-HV BIL: 60,75.95, 125,150KV
-NON-PCB
-Frequency: 60hz
-Taps: +- 2x2.5% others under request
-Temperature Rise: 65°C
-Oil type: FR3 Envirotemp, Under request, Mineral Oil or Beta Fluid.
-Standard Complies: ANSI/IEEE C57.12.00, C57.12.20 , C57.12.38 , C57.12.90 , BS171, SABS
-More normal & Optional Features please Download the Cataloge here below:
Please Click here for Download single phase Pad-mounted cataloge
Range Product., Three Phase Pad-Mounted Transformer:
-Rated Power: 75 upto 2500 KVA
-Termination: Loop feed or Radial feed., dead front
-High Voltage: 13200V and 34500V, others under request
-Low Voltage: 208Y/120V, 4 wires, 480Y/277V, 4 wires., others under request.
-HV. BIL: 60,75,95,125,150KV
-NON-PCB
-Frequency: 60hz or 50hz
-Taps: +- 2x2.5% others under request.
-Temperature Rise: 65°C
-Dielectric Oil type: FR3 Envirotemp, Under request Mineral oil, Silicone and Beta Fluid
-Standard Complies: ANSI/IEEE C57.12.00 , C57.12.20, C57.12.38, C57.12.90, CSA-C227-3-06, BS171,IEC60076,SABS 780
-More normal & Optional features please Download the cataloge here below:
Please Click here for Download Three phase Pad-Mounted Transformer Cataloge
Range Product., Single Phase Pole Mounted Transformer:
-Rated Power: 3 upto 333 KVA
-High Voltage: 13200/7620, 13800/7967, 34500/19920, others under request
-Low Voltage: 120-240V, 3 wires
-NON.PCB
-Frequency: 60hz
-Taps: +- 2x2.5% others under request
-Dielectric Oil type: FR3 Envirotemp, Under request Mineral oil or Beta Fluid
-Standard Complies: ANSI/IEEE C.57.12.00 , C57.12.20
-More normal & Optional features please Download the cataloge here below:
Please Click here for Download Single Phase Pole Mounted Transformer Cataloge
Range Product.; Dry Type Three Phase Epoxy Resin Transformer:
-Rated Power 30 upto 3150 KVA
-Termination Radial Feed, live front.
-High Voltage 13,200V and 34500V, other under request
-Low Voltage: 208Y/120V, 4 wires , 480Y/277V, 4 wires., others under request
-HV. BIL: 60,75,95,125,150 KV
-Frequency: 60hz or 50hz
-Taps +- 2x2.5% others under request
-More normal & Optional features please Download the cataloge here below:
Please Click here for Download Dry type epoxy three phase transformer Cataloge
Range Products: Oil Immersed Three Phase Transformer:
-Rated Power 30 upto 5000 KVA
-Termination Radial Feed, live front or dead front under request.
-High Voltage 13,200V and 34500V, other under request
-Low Voltage: 208Y/120V, 4 wires, 480Y/277V, 4 wires., others under request
-HV- BIL: 60,75,95,125, 150KV
-Frequency: 60hz or 50hz
-Taps +- 2x2.5% others under request
-Dielectric Oil Type: FR3 Envirotemp, Under request mineral Oil or Beta Fluid
-Standard Complies: IEC 60214-1, IEC 60296, IEC 60076, IEC 6013, GB 1094-1996, GB / T6451-2008, GB / T5977-2007
-More normal & Optional features please Download the cataloge here below:
Please Click here for Download Oil Immersed Three Phase Transformer Cataloge
Dear client if do you have a request, please send us the quantity and model products to the following e-mail: mtc@mtcpowerequipment.com
in minus time than 24 hours we will contact you., thank you.
.
